Large Inductance Winding Inductance , Gray SMD Power Inductor 470uH NLV32T - 471J - PF

Shenzhen Winsun Technology Co., Ltd.
Contact Now

Large Inductance Winding Inductance , Gray SMD Power Inductor 470uH NLV32T - 471J - PF

  • 1
  • 2

Brand Name : WS

Model Number : NLV32T-471J-PF

Certification : SGS

Place of Origin : CN

MOQ : 2000pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000000pcs /day

Delivery Time : 3 - 5 work days

Packaging Details : plastic reel + carton

Color : Gray

Inductance : 470uH

Size : 3.2×2.5×2.2mm (L×W×T)

Rated Current : 25mA

DCR : 40Ω

Test frequency : 0.796M Hz

Package : SMD

Contact Now

Large Inductance 3225 470uH NLV32T471JPF TDK SMD Ferrite Wire Wound Inductor





SPECIFICATIONS:

Inductance: 470uH

* Size:  3.2×2.5×2.2mm  (L×W×T)

* Rated Current : 25mA(Max)

* DCR :40 Ω (Max)

* Test frequency: 0.796M Hz
• This is a renewed version of NL322522.

•  Highly resistant to mechanical shocks and pressure
•  Highly reliable in environments of sudden temperature change and humidity
•  Low DCR&better Q value in ferrite series

•  Highly accurate dimensions can be mounted automatically
•  Terminals are highly resistant to pull forces

•  RoHS compliant
•  Very strong solderability by reflow soldering and soldering iron

•  Highly heat resistant thermoplastic resin is used to form the
   exterior package.
•  From 0.01μH to 470μH, all of the products in the E-12 series are
   J(±5%) tolerance products.
•  The product has good heat durability that withstands lead-free
   compatible reflow soldering conditions.
•  Lead-free material is used for the plating on the terminal.
•  The electrical characteristics, reliability, shape and pad shape
   are the same as the previous NL series.
•  The product uses metal terminals, which realize excellent
    connection reliability.
•  This product is in compliance with the RoHS Directive. Other
    products with specifications that do not include exemption
    regulations are also available.

•   Conformity to RoHS Directive: This means that, in conformity with EU Directive

    2002/95/EC,lead, cadmium,      mercury, hexavalent chromium, and specific
    bromine-based flame retardants, PBB and PBDE, have not been used,

    except for exempted applications.





APPLICATIONS:

Telecom and datacom applications such as XDSL Cable Modem

• Electronic equipment used in onboard automobile equipment
  including car audio and ECU systems.
• Other electronic equipment including HDDs and ODDs.

• Audio-visual equipment including TVs, VCRs and digital cameras.
• Electronic equipment used in communication infrastructures
  including xDSL and mobile base stations.



PRODUCT IDENTIFICATION:

* NLV 32T- 471J - PF
  (1) (2) (3) (4)(5)  (6)



(1)Series name

(2)Dimensions: 3.2×2.5×2.2mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 471=470uH

(5)Inductance tolerance: J=±5%

(6) Lead-free compatible product: PF Lead-free compatible product



Inductance  Size Rated Current DCR Test frequency
470uH 3.2×2.5×2.2mm (L×W×T) 25mA(Max) 40Ω (Max) 0.796M Hz







SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range      –40 to +105°C





PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel





IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

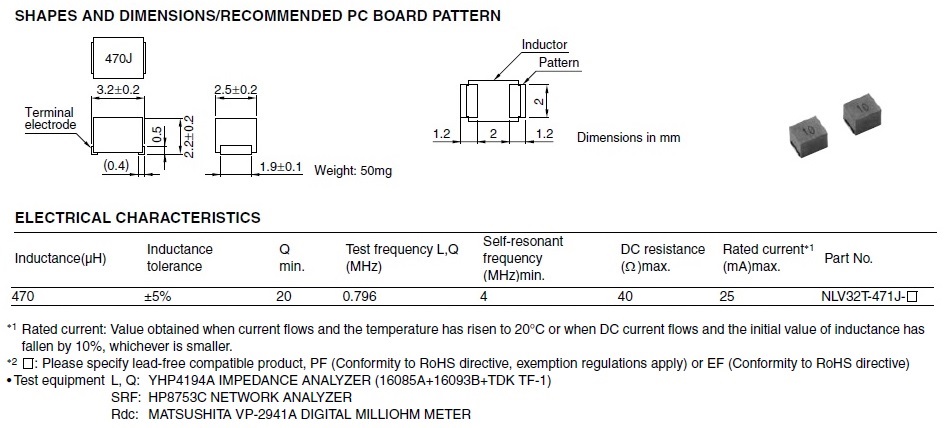

DIMENSIONS : (unit: mm/inch)
