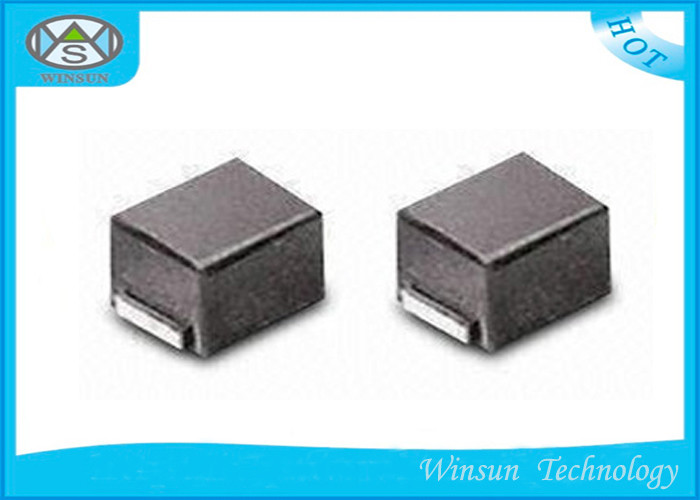

High Saturation Current NLV32T Series TDK SMD Ferrite Wire Wound Inductor
SPECIFICATIONS:
* Inductance: 0.01 ~470uH
* Size: 3225 (1210)
* Rated Current : 25 ~450mA(Max)
* DCR : 0.13 ~40 Ω (Max)
* Test frequency: 0.796 ~100M Hz
• This is a renewed version of NL322522.
• The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal.
• The electrical characteristics, reliability, shape and pad shape
are the same as the previous NL series.
• The product uses metal terminals, which realize excellent
connection reliability.
• Highly heat resistant thermoplastic resin is used to form the
exterior package.
• From 0.01μH to 470μH, all of the products in the E-12 series are
J(±5%) tolerance products.
• This product is in compliance with the RoHS Directive. Other
products with specifications that do not include exemption
regulations are also available.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive
2002/95/EC,lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used,
except for exempted applications.
APPLICATIONS:
• Audio-visual equipment including TVs, VCRs and digital cameras.
• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
• Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
• Other electronic equipment including HDDs and ODDs.
| Inductance range | Size | Rated Current | DCR | Test frequency |
| 0.01 ~ 470uH | 3225 (1210) | 25 ~ 450mA(Max) | 0.13 ~40 Ω (Max) | 0.796 ~ 100M Hz |
SPECIFICATIONS:
* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C
PACKAGING STYLE AND QUANTITIES:
Packaging style: Taping
Quantity: 2000 pieces/reel
IRON SOLDERING:
Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm
• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.
DIMENSIONS : (unit: mm/inch)
