High Power Shielded Magnetic Inductor WSBTSA Series For LCD Television

High Power Shielded Magnetic SMD Power Inductor WSBTSA Series For LCD Television

Product Description:

1. The surface mount inductors are designing for the smallest possible size and high performance. They are with high energy storage and very low resistance making them the ideal inductors for DC-DC conversion in the following application.

2. VGA display card, Notebook computers, PDAs, Step-up and step-down converters, Flash memory programmers, etc.

3. SMD Power Inductor Coil can be OEM according to customer's special requirements.

FEATURES:

Various high power inductors are superior to be high saturation for surface mounting .

Inductance Range: 1uH - 1500uH
Rated Current : 0.01A~10A(Max)

DCR : 0.01~10 Ω (Max)

PART NUMBERING SYSTEM:
WSBTSA - 6025 - 100 - K - R
     (1 )            (2)     (3)  (4)  (5)
1 Series Name

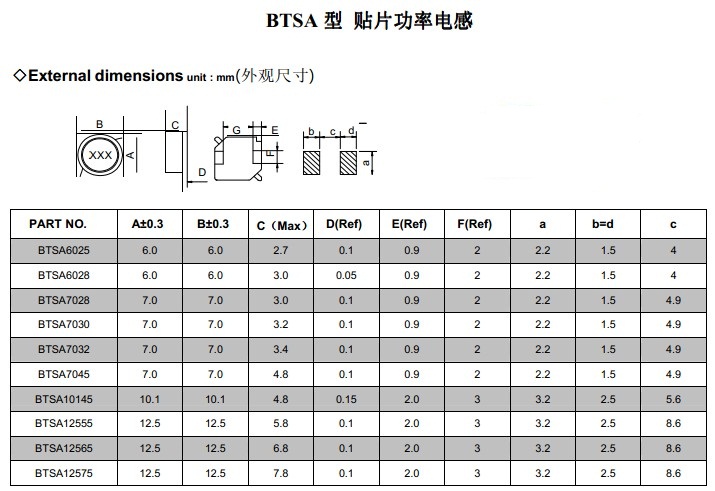

2 Dimensions
3 Inductance  1R0＝1.0 uH.100＝10uH.101＝100uH.
4 Tolerance    J＝±5%, K＝±10%, L＝±15%, M＝±20%, P＝±25%, N＝±30%
5 Packing code   R: Tape&Reel     B: In Bulk


APPLICATIONS:

Power supplies ,

DC-DC converters,

Computer Peripherals,

Telephones, Air-Conditions,

Home electric appliance etc..

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

smd power inductor

surface mount power inductor
